NVMesh Storage Solutions (Excelero)

Supermicro NVMesh Storage Solutions

Low-latency distributed block storage for web-scale data centers

Solution Overview

New application workloads are driving the need for new storage architectures: Cloud, Edge, AI and IoT bring new latency requirements – therefore companies need to rethink their storage strategies.

Supermicro and Excelero have joined forces to deliver a high-performance, low-latency distributed block storage solution leveraging NVMe flash. The Supermicro NVMesh solution enables unmodified applications to utilize pooled NVMe storage devices across a network at local speeds and latencies. It was designed to combine virtually unlimited Supermicro servers with NVMe to scale capacity and performance.

Solution Key Benefits:

  • Maximize the utilization of your NVMe SSDs
  • Predictable application performance
  • Supports standard hardware & protocols
  • Use as block storage or with any file system
  • Easy to manage & monitor

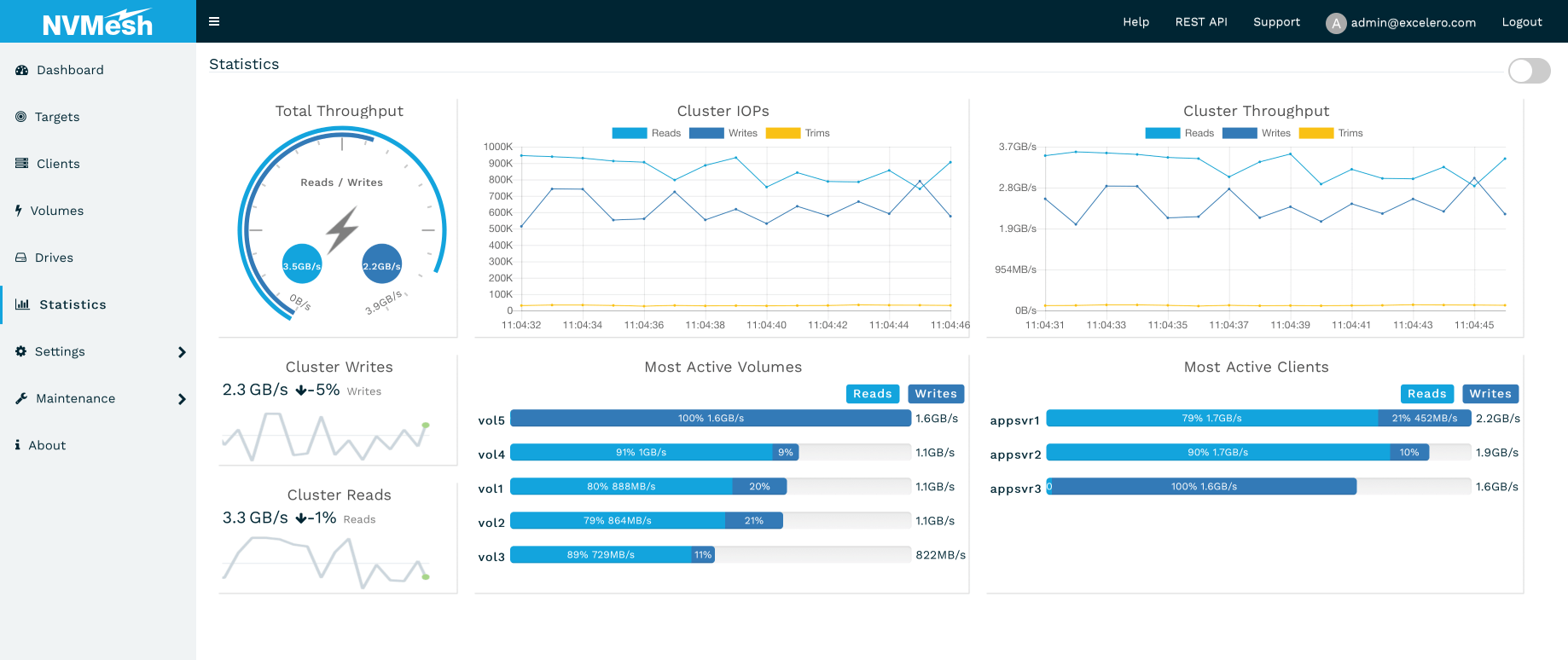

Screenshot of NVMesh

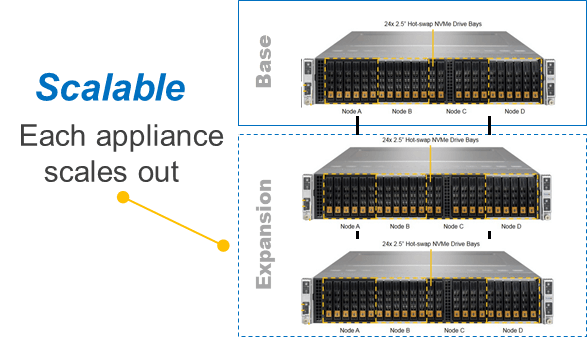

Product Brief

The Supermicro NVMesh Reference Architecture implements the next-generation of intelligent infrastructure platforms designed to provide applications with all of the raw performance you can expect from local storage — and all of the flexibility, manageability and scalability typically experienced with traditional storage area network-based solutions. Leveraging the latest NVMe and PCIe standards, this reference architecture uses a low-latency, high-bandwidth networking to connect compute and storage together in a flexible way that will fit almost any application’s architecture requirements. Deploy this RA in storage-centric, compute-centric or mixed storage and compute configurations, and integrate it with existing data center application servers as desired.

NVMesh Product Brief

Supermicro NVMesh Reference Architecture

  SuperStorage EDSFF Server BigTwin Server Ultra Server
Platform Form Factor 1U 1 node 2U 4 nodes 1U 1 node or
2U 1node
Storage Media 32x 4TB or 16TB NVMe SSD devices Up to 24x 15.3TB NVMe SSD devices Up to 10 or 24x 15.3TB NVMe SSD devices
CPU (two per node) Intel® Xeon® Scalable Processors for X11 SuperStorage 2nd Generation Intel® Xeon® Scalable Processors for X11 BigTwin Intel® Xeon® processor E5-2600 v4 family for X10 Ultra
or
Intel® Xeon® Scalable Processors for X11 Ultra
Memory suggested 192GB DDR4 2933 per node suggested 192GB DDR4 2933 per node suggested 192GB DDR4 2933 per node
Network up to 2 Mellanox ConnectX 5 VPI NIC up to 8 Mellanox ConnectX 5 VPI NIC up to 2 Mellanox Connect 5 VPI NIC
RAW Capacity up to 512 TB per node up to 92TB per node (367TB per BigTwin) up to 367TB per node
Available Data Protection Fully Distributed RAID, enabling linear scale of performance and capacity
Infrastructure Support TCP/IP; RoCEv2; Infiniband
IOPs Performance up to 10M random 4k up to 20M random 4k up to 5M random 4k
Throughput Performance up to 24GB/s up to 76GB/s up to 24GB/s
IO Latency Alike the local NVMe SSD Latency
Performance Density 24GB/s or 10M IOPs per RU 38GB/s or 10M IOPs per RU 12GB/s or 2.5M IOPs per RU
Management CLI, GUI, REST API CLI, GUI, REST API CLI, GUI, REST API
Operating System Support Linux
File System Support POSIX like as ext4 and xfs, plus GPFS, BeeGFS & Lustre
Excelero Software NVMesh Client
NVMesh Target
Available Excelero Service NVMesh 3y premium support
NVMesh Install Service, On-site
Available Supermicro Service 3-year onsite 24x7x4 service / 3-year onsite next business day service
Onsite Integration Services Onsite Survey Onsite logistics Racking & Cabling (with 3rd party switches) Racking & Cabling Engineering Drawing Releasing (Test included)

GPU Storage Reference Architecture

Configuration with HA (high availability)

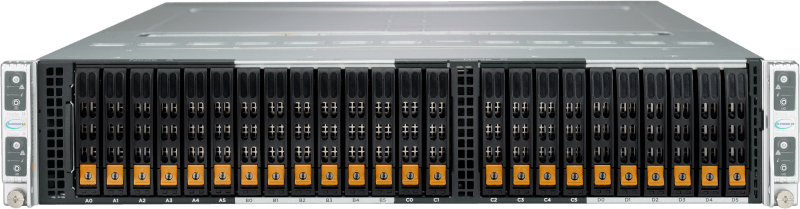

A 2U-4-Node server with 24 NVMe drives that enables a HA solution with MeshProtect-0, 1, 10 & 6 @ 8+2

2U-4-Node server with 24 NVMe drives
  Supermicro P/N Description Qty
Server SYS-2029BZ-HNR BigTwin 3UPI 2U 4-Node, 6x 2.5" NVMe, X11DPT-BH, 217BHQ+ 1
CPU P4X-CLX4216-SRFBB CLX 4216 2P 16C/32T 2.1G 22M 9.6GT 100W 3647 L1 8
Memory MEM-DR416L-CL02-ER29 16GB DDR4-2933 1RX4 LP ECC RDIMM 48
M.2 Carrier AOC-SMG3-2H8M2-B-O 2x Hybrid NVMe/SATA M.2 Carrier for Big Twin,HF,RoHS 4
Boot Drive HDS-IMT0-SSDSCKKB960G8 Intel D3 S4510 960GB M.2 SATA 6Gb/s 3D TLC 22x80mm 1DWPD 8
NVMe** HDS-MUN-MTFDHAL15T3TDP1A Micron 9300 PRO 15.3TB NVMe PCIe 3.0 3D TLC U.2 15mm 24
NIC Card* AOC-MCX556A-ECAT MCX556A-ECAT, CX-5 VPI, EDR IB, 100GbE, 2p, QSFP28, PCIe3 x16 8
SIOM NIC AOC-MGP-I4M-O SIOM 4-port GbE RJ45, Intel i350 with 1U bracket 4
Supermicro System Management Software SFT-DCMS-SINGLE Supermicro System Managment Software Suite node license, HF, RoHS/REACH, PBF 4
NVMesh SFT-EX-SWCCI24-3YR NVMesh per-chassis subscription license, up to 24 NVMe devices. Includes unlimited Clients. 3 year subscription including Premium Support. 1
NVMesh SVC-EX-PSINSTALL On-site, NVMesh Installation Services, per day, per 100 Client and/or Target Nodes 1

* Infiniband or RoCE

** The architecture supports NVMe drives from all major manufacturers, including Micron, Intel, Kioxia, Samsung and Western Digital. Different drive sizes are supported. For Erasure Coded configurations, NVMe drive families, including Western Digital SN200, Samsung 1725b & 1733, Kioxia CM5 & CM6, with 3 DWPD or more endurance are supported.

Configuration without high availability (non-HA)

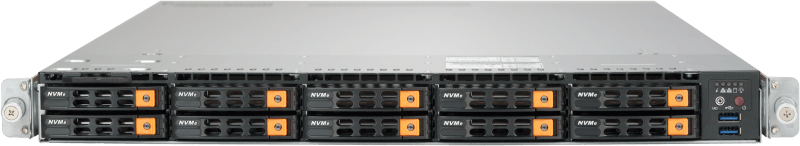

A 1U 10-drive-bay server with 10 NVMe drives that allows a non-HA solution with MeshProtect-0 & 6 @ 8+2

1U 10-drive-bay server with 10 NVMe drives
  Supermicro P/N Description Qty
Server SYS-1029U-TN10RT X11DPU, 119UTS-R1K02P-N10TAOC-URN6-I2XT 1
CPU P4X-CLX4216-SRFBB CLX 4216 2P 16C/32T 2.1G 22M 9.6GT 100W 3647 L1 2
Memory MEM-DR416L-CL01-ER29 16GB DDR4-2933 2RX8 LP ECC RDIMM 6
Boot Drive HDS-IMT0-SSDSCKKB960G8 Intel D3 S4510 960GB M.2 SATA 6Gb/s 3D TLC 22x80mm 1DWPD 1
NVMe** HDS-MUN-MTFDHAL15T3TDP1A Micron 9300 PRO 15.3TB NVMe PCIe 3.0 3D TLC U.2 15mm 10
NIC Card* AOC-MCX556A-ECAT MCX556A-ECAT, CX-5 VPI, EDR IB, 100GbE, 2p, QSFP28, PCIe3 x16 2
Supermicro System Management Software SFT-DCMS-SINGLE Supermicro System Managment Software Suite node license, HF, RoHS/REACH, PBF 1
NVMesh SFT-EX-SWCCI12-3YR NVMesh per-chassis subscription license, up to 12 NVMe devices. Includes unlimited Clients. 3 year subscription including Premium Support. 1
NVMesh SVC-EX-PSINSTALL On-site, NVMesh Installation Services, per day, per 100 Client and/or Target Nodes 1

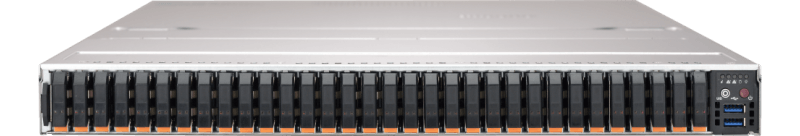

EDSFF-Short E1.S Server

EDSFF-Short E1.S Server
  Supermicro P/N Description Qty
Server SSG-1029P-NES32R CSE-121EF + X11DSF-E-P 1
CPU P4X-CLX4210-SRFBL CLX 4210 2P 10C/20T 2.2G 13.75M 9.6GT 85W 3647 R1 2
Memory MEM-DR416L-SL04-ER26 16GB DDR4-2666 1Rx4 LP ECC REG DIMM,HF,RoHS 12
Boot Drive HDS-MMT-MTFDDAV960TDS1AW Micron 5300 PRO 960GB, SATA, M.2, 22x80mm,3D TLC,1.5DWPD 2
AOC AOC-SLG2-2TM2-T-O OEM LP PCIe2 2x 7pin SATA3 RAID 1 1
NIC Card* AOC-MCX556A-ECAT Mellanox ConnectX-5 VPI adapter card, EDR IB(100Gb/s) & 100GbE, dual port QSFP28 2
NVMe HDS-IEN0-SSDPEYKX040T8 Intel DC P4511 EDSFF E1.S TLC 5.9mm 4TB 32
Supermicro System Management Software SFT-DCMS-SINGLE Supermicro System Managment Software Suite node license,HF,RoHS/REACH,PBF 1
NVMesh SFT-EX-SWCCI32-3YR NVMesh per-chassis subscription license, up to 32 NVMe devices. Includes unlimited Clients. 3 year subscription including Premium Support. 1
NVMesh SVC-EX-PSINSTALL On-site, NVMesh Installation Services, per day, per 100 Client and/or Target Nodes 1

EDSFF-Long E1.L Server

EDSFF-Short E1.S Server
  Supermicro P/N Description Qty
Server SSG-1029P-NEL32R 1U DP 32 EDSFF Long 1
CPU P4X-CLX4210-SRFBL CLX 4210 2P 10C/20T 2.2G 13.75M 9.6GT 85W 3647 R1 2
Memory MEM-DR416L-SL04-ER26 16GB DDR4-2666 1Rx4 LP ECC REG DIMM,HF,RoHS 12
Boot Drive HDS-MMT-MTFDDAV960TDS1AW Micron 5300 PRO 960GB, SATA, M.2, 22x80mm,3D TLC,1.5DWPD 2
NIC Card* AOC-MCX556A-ECAT Mellanox ConnectX-5 VPI adapter card, EDR IB(100Gb/s) & 100GbE, dual port QSFP28 2
NVMe HDS-IEN0-SSDPEWNV153T8 Intel D5-P4326 E1.L PCIe3.1x4QLC9.5mm15.36T 3D2 <0.5DWPD 32
Supermicro System Management Software SFT-DCMS-SINGLE Supermicro System Managment Software Suite node license,HF,RoHS/REACH,PBF 1
NVMesh SFT-EX-SWCCI32-3YR NVMesh per-chassis subscription license, up to 32 NVMe devices. Includes unlimited Clients. 3 year subscription including Premium Support. 1
NVMesh SVC-EX-PSINSTALL On-site, NVMesh Installation Services, per day, per 100 Client and/or Target Nodes 1

* Infiniband or RoCE

** The architecture supports NVMe drives from all major manufacturers, including Micron, Intel, Kioxia, Samsung and Western Digital. Different drive sizes are supported. For Erasure Coded configurations, NVMe drive families, including Western Digital SN200, Samsung 1725b & 1733, Kioxia CM5 & CM6, with 3 DWPD or more endurance are supported.

Certified Nodes for Supermicro NVMesh Reference Architecture

Supermicro 1U Petascale U.2 Storage Server

A 100%, all NVMe flash storage server, optimized to efficiently serve petabyte-scale workloads with the low latency and high-IOPS performance using the popular and widely-available U.2 form factor. The Supermicro SuperStorage platform provides industry leading density and performance in a 1U footprint. By offering 32 hot-pluggable U.2 drives, petabyte-scale capacity can be achieved and enable an unprecedented combination of storage performance, density, efficiency and enterprise serviceability.

1U Petascale U.2 Benefits

  • High Density, High Performance (IOPS/Latency)
  • Widely available SSD form factor providing customers a range of drive capacities and vendors to select from
  • Hot-swappable and Power Loss Protection
  • Perfect for both intensive-read / intensive-write workloads
  • Available in 1 TB, 2 TB, 4 TB, 8 TB and 16 TB capacity per drive
SYS-1029P-N32R
32 NVMe Support • (2 sleds with 16 drives per sled)
  • High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
  • Dual socket P (LGA 3647) supports 2nd Gen. Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • 32 Hot-swap 2.5" NVMe SSDs (2 sleds with 16 drives per sled), 2 M.2 boot drives
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 slots
  • 2x 10GBase-T LAN ports, 1 dedicated IPMI Port
  • 1 VGA, 2 USB 3.0, 1 COM, 2 SuperDOM
  • Built-in Intel® QAT for Crypto/Compression
  • 8 Hot-swap 40mm cooling fans
  • 1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

Supermicro EDSFF Storage Server

A 100%, all NVMe flash storage server, optimized to efficiently serve petabyte-scale workloads with the low latency performance only available with Flash media. The Supermicro SuperStorage platform provides industry leading density in a 1U footprint. By offering 32+ hot-pluggable drives, petabyte-scale capacity can be achieved and enable an unprecedented combination of storage performance, density, efficiency and enterprise serviceability.

EDSFF-Short E1.S Benefits

This combination optimizes IOPs per Watt which is ideal for transitioning capacity tiers of storage based on legacy HDDs to the benefits of all-flash NVMe SSDs. The system offers 32 E1.S drives with a proportionally shorter chassis depth.

  • High density, thermal efficiency and hot-plug capability
  • EDSFF supports NVMe through PCIe Gen 3/4/5 up to 16 lanes
  • Hot-swappable and Power Loss Protection
  • Industry Recognized SSD form factor
  • Available in 4 TB capacity per drive

EDSFF-Long E1.L Benefits

This combination is focused on storage density as 1 RU can provide up to ½ PB of storage while also providing the EDSFF thermal advantages and best NVMe I/O performance.

  • High density, thermal efficiency and hot-plug capability
  • EDSFF supports NVMe through PCIe Gen 3/4/5 up to 16 lanes
  • Hot-swappable and Power Loss Protection
  • Industry Recognized SSD form factor
  • Both QLC and TLC E1.L SSDs are available, providing flexibility for both read/write-intensive applications
  • Available in 16 TB capacity per drive
SSG-1029P-NEL32R

  • High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 32 Hot-swap EDSFF Long drive slots
  • 24 DIMMs; up to 6TB 3DS ECC DDR4 2933MHz RDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 Low-profile slots
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 1 TPM header
  • 8x 40x56mm PWM fans
  • 1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-1029P-NES32R

  • IOPS Intensive Storage App., DB App. (MySQL, Casandra), Hyper-converged Infrastructure / Scale-out Architectures
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 32 Hot-swap EDSFF Short drive bays
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x4
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0, 1 TPM header
  • 8x 4cm counter-rotating cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Supermicro NF1 Server

Supermicro in collaboration with Samsung has developed an extremely dense, very high capacity, all-flash storage server platform poised to revolutionize the industry with its price/performance and design efficiency. Using only one rack unit, it can house up to 576 TB of storage. The Samsung NF1 form factor was specifically designed to maximize performance and capacity for data intensive/low latency workloads. As a leader in Flash technology Samsung has created the NF1 form factor that has disrupted the storage industry with its reduced consumption of space and power.

The NF1 server starts with a no compromise motherboard featuring dual Intel™ Xeon™ Scalable processors up to 205W, which provide up to 56 cores, and 24 DIMMs for 3 TB of system memory. To achieve commercial success in both these application areas, the All-Flash platform must provide the lowest TCO, changing the decision from performance-at-all-cost, to a balance of price/performance and efficiency. The NF1 server strikes this balance perfectly.

NF1 Benefits

  • Easy to access and service with a front loading design
  • PCI-E 3.0 interface for up to 4 lanes
  • Compliant with NVMe 1.2 specifications
  • Hot-swappable and Power Loss Protection
  • 30.5 x 110mm, 4.38mm height
  • Available in 4-16TB capacities per drive
SSG-1029P-NMR36L

  • IOPS Intensive Storage App., DB App. (MySQL, Casandra), Hyperconverged Infrastructure / Scale-out Architectures
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 32 Hot-swap NF1 drive bays, 4 hybrid PCI-E NF1 or SATA3 M.2 drive bays
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x4
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0, 1 TPM header
  • 8x 4cm counter-rotating cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Supermicro BigTwin™

Supermicro BigTwin is the first and only 2U multi-node system supporting the highest performance processor, memory, storage, I/O and an incredible 30% better thermal capacity, leveraging the Titanium Level 96% efficient power supplies (2200W/2600W). The 5th generation of Supermicro's Twin architecture is fully optimized for today's diverse workloads and architected for further technology breakthroughs.

The system delivers the highest performance and efficiency in a 2U 4-node platform. It supports the widest TDP range of CPUs (up to 205W), fully exploits all memory channels with 24 DIMMS per node and 24 All-Flash NVMe drives. Finally, the Supermicro BigTwin provides 100% more I/O capacity and added flexibility with more than10 networking options including 1GbE, 10G, 25G, 100G, IB and industry leading SIOM modular interconnect.

BigTwin Benefits

  • A full range of processors up to the highest performance 205W CPUs
  • Maximum Memory Size with full 24 DIMMs of memory per node
  • 24 All-Flash NVMe or Hybrid Drives
  • Double the I/O Capacity with 4 hot-swappable nodes in a 2U form factor
SYS-2029BZ-HNR
BigTwin™ • 6 NVMe per Node • N+1 Cooling
  • 4 DP nodes in 2U; depth 28.75", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 6 Hot-swap 2.5" NVMe drive bays per node; 2 M.2 SATA3 or NVMe support
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 16 Heavy duty 40x56mm fans w/ optimal fan speed control (4 fans per node)
  • 2600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

 SYS-2028BT-HNR+
24 NVMe support • 6 NVMe per Node
  • 4 DP nodes in 2U; depth 28.75", Each Node:
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • At least one network card must be bundled
  • 6 Hot-swap 2.5" NVMe drive bays per node
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) High-efficiency Power Supplies

Supermicro A+ server with integrated system cooling fans designed for an ultra-dense multi-node infrastructure in a compact package for up to 2600-watt power delivery at Titanium Level (96%) efficiency, the enabling technology for the BigTwin to support AMD EPYC™ processors with up to 16 DIMM slots per node. The BigTwin reduces power consumption with shared cooling and power design, leveraging redundant high efficiency power supplies.

AS -2123BT-HNR


2U 4 Nodes; Each node:

  • Dual AMD EPYC™ 7000-series processors supported (Socket SP3)
  • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in  16 DIMMs
  • 1 M.2, 6 hot-swap 2.5" NVMe drive bays
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support  (optional; must bundle with at least one SIOM network card)
  • IPMI 2.0 + KVM with dedicated LAN support, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 2600W Titanium level Redundant Power Supplies with PMBus

Supermicro Ultra

Supermicro Ultra Servers are designed to deliver the highest performance, flexibility, scalability and serviceability to demanding IT environments, and to power mission-critical Enterprise workloads. With Redundant Titanium Level (96%+) Power Supplies (1600W), Supermicro Ultra Servers are able to provide green computing solutions to our customers while delivering unrivaled performance, flexibility, scalability, and serviceability for demanding Enterprise workloads.

Ultra SuperServers support up to: 3TB DDR4 2666MHz in 24 DIMMs; SATA3 with optional SAS3 and NVMe support for increased storage bandwidth; a variety of Ultra Riser options, including built-in 1G, 10GBASE-T, 10G SFP+, and 25G Ethernet options; support for add-on SAS 3 HW/SW RAID controllers and additional PCI-E 3.0 slots. Supermicro Ultra Servers is the best fit for diverse workloads and applications and can be easily reconfigured for multiple Enterprise and Data Center applications in Virtualization, Big Data, Analytics and Cloud Computing.

Ultra Benefits

  • Support for new generation X11 Solutions with Dual Intel® Xeon® Scalable processor up to 205W
  • Up to 3TB DDR4 2666MHz in 24 DIMM slots
  • 100/40/25/10G Ethernet
  • NVMe/SAS3/SATA3 Drive Bays
  • Up to 8/4 PCI-E 3.0 Expansion Slots
  • Redundant Titanium Level (96%+) Power Supplies
SYS-1029U-TN10RT
10 NVMe support • 24 DDR4 DIMM • 2x 10GBase-T
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 10 Hot-swap 2.5" drive bays; 4 NVMe/SAS3 hybrid + 6 NVMe ports
  • 2 PCI-E 3.0 x16 Full-height, 10.5" L slots
  • 2x 10GBase-T ports, 1 Dedicated IPMI port
  • 2 VGA (1 rear, 1 onboard), 1 Serial, 5 USB 3.0
  • 8 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies



SYS-2029U-TN24R4T
24 NVMe support • 4x 10GBase-T
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays; 24 NVMe (4 hybrid ports - SAS3 via AOC), 2 rear Hot-swap 2.5" drive bays; 2 internal M.2 (1 SATA3, 1 NVMe)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (LP)
  • 4x 10GBase-T ports, 1 Dedicated IPMI port
  • 2 VGA (1 rear, 1 onboard), 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm PWM fans
  • 1600W Redundant Titanium Level (96%) Power Supplies



SYS-2028U-TN24R4T+
24 NVMe support • 4x 10GBase-T
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" NVMe bays (4 hybrid ports - optional SAS3 support via AOC); 2x 2.5" Hot-swap SATA3 drive bays (rear)
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 2 PCI-E 3.0 x16 slots (FH 10.5" L), 1 PCI-E 3.0 x8 (LP) slot
  • 4x 10GBase-T ports, 1 dedicated IPMI, 1 Video, 1 COM, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
  • System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
  • 4x 80mm heavy duty PWM fans
  • 1600W Redundant Titanium Level (96%) Power Supplies
